Automatic Solution for Snus in Zipper Pouch Packing
Automatic Solution for Snus in Zipper Pouch Packing
Accurate counting, filling, and sealing for premium, retail-ready zipper packs.
Engineered for nicotine and tobacco pouch brands serving modern retail channels, this system precisely counts pre-formed snus pouches and automatically fills them into laminate zipper bags at speeds of up to 120 packs per minute. With integrated vibratory bowl counting, metal detection, and check weighing, it ensures zero-defect output and consistent, high-quality production standards.
PRODUCT OUTPUT
Zipper Laminate Pouch | Nicotine & Tobacco Retail Packs

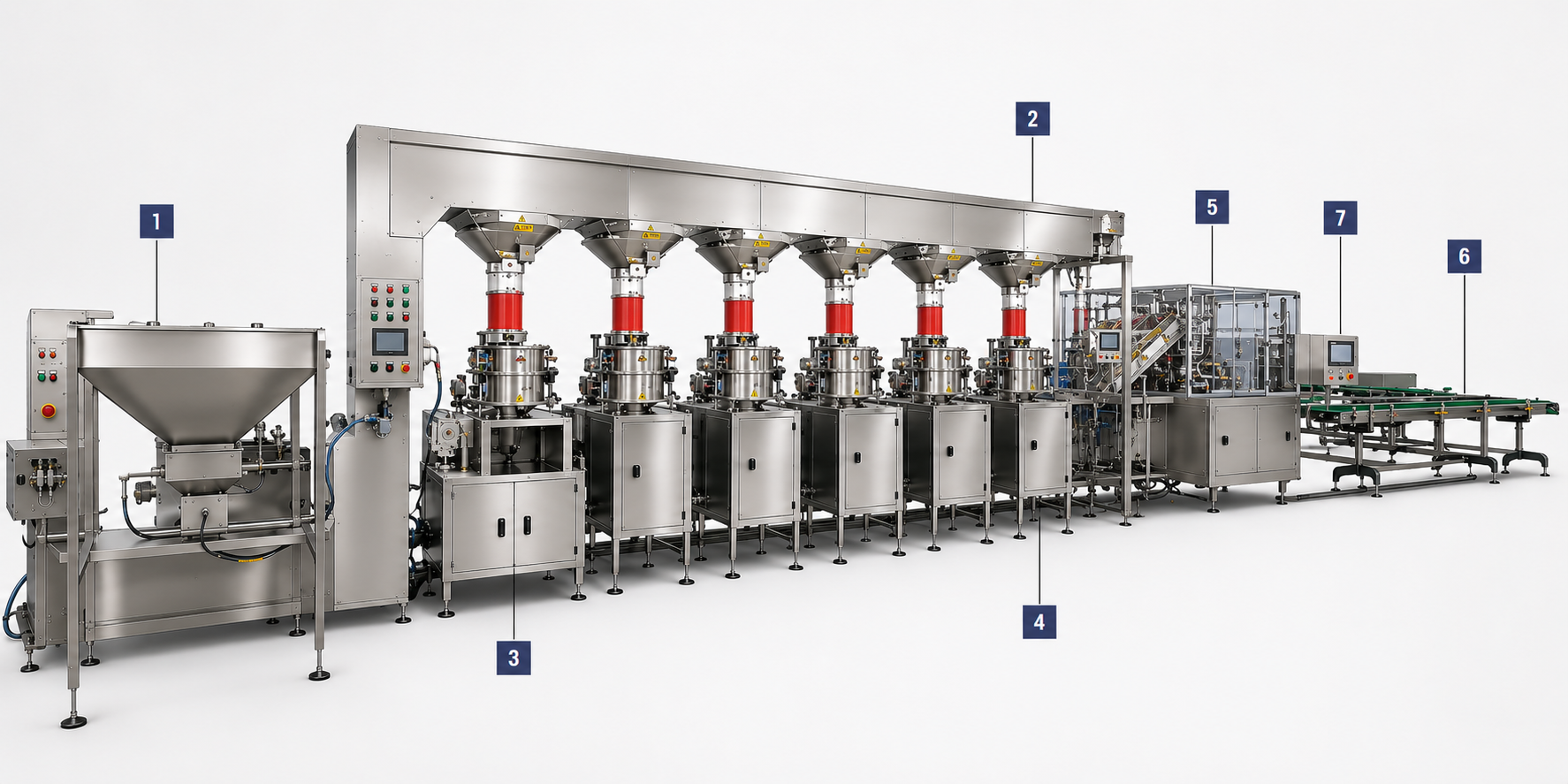

Machine Components
1
Component 1
Hopper — Bulk snus/nicotine pouch storage and gravity feed
2
Component 2
Over-Head Material Feeder — Elevation and transfer of filled pouches
3
Component 3
12× Vibratory Bowl for Counting — 12-channel counting system for precise pouch quantities
4
Component 4
Bucket Elevator — Continuous elevation of counted pouches
5
Component 5
Horizontal Form Fill Seal Machine (Duplex) — Outer zipper bag forming, filling, and sealing
6
Component 6
Connecting Conveyor — Smooth transfer between stations
7
Component 7
Check Weigher + Metal Detector — Final quality assurance before dispatch
| Technical Specifications | |
|---|---|
| Production Capacity | 120 Outer Pouches / Min |
| Bag Size (Outer) | 80–90 mm (W) × 100–110 mm (H) |
| Pouches Per Outer Bag | 5–10 Pouches (Adjustable) |
| Type of Film | Laminate |
| Sealing Type | Heat Sealable with Zipper Closure |
| Packing Material | Nicotine & Tobacco Pouches in Zipper Pack |
| Air Consumption | 60 CFM @ 6 Bar Pressure |
| Power Consumption | 25 KW |
| Voltage Supply (Standard) | 440V, 50 Hz, 3 Phase |
| Machine Dimension | 17 m (L) × 7 m (W) × 2.5 m (H) |
| Machine Weight | 13,000 Kg |
