Automatic Shisha Molasses Packing Line
End-to-end automated packaging for shisha molasses — from pouch formation to shrink-wrapped cartons.

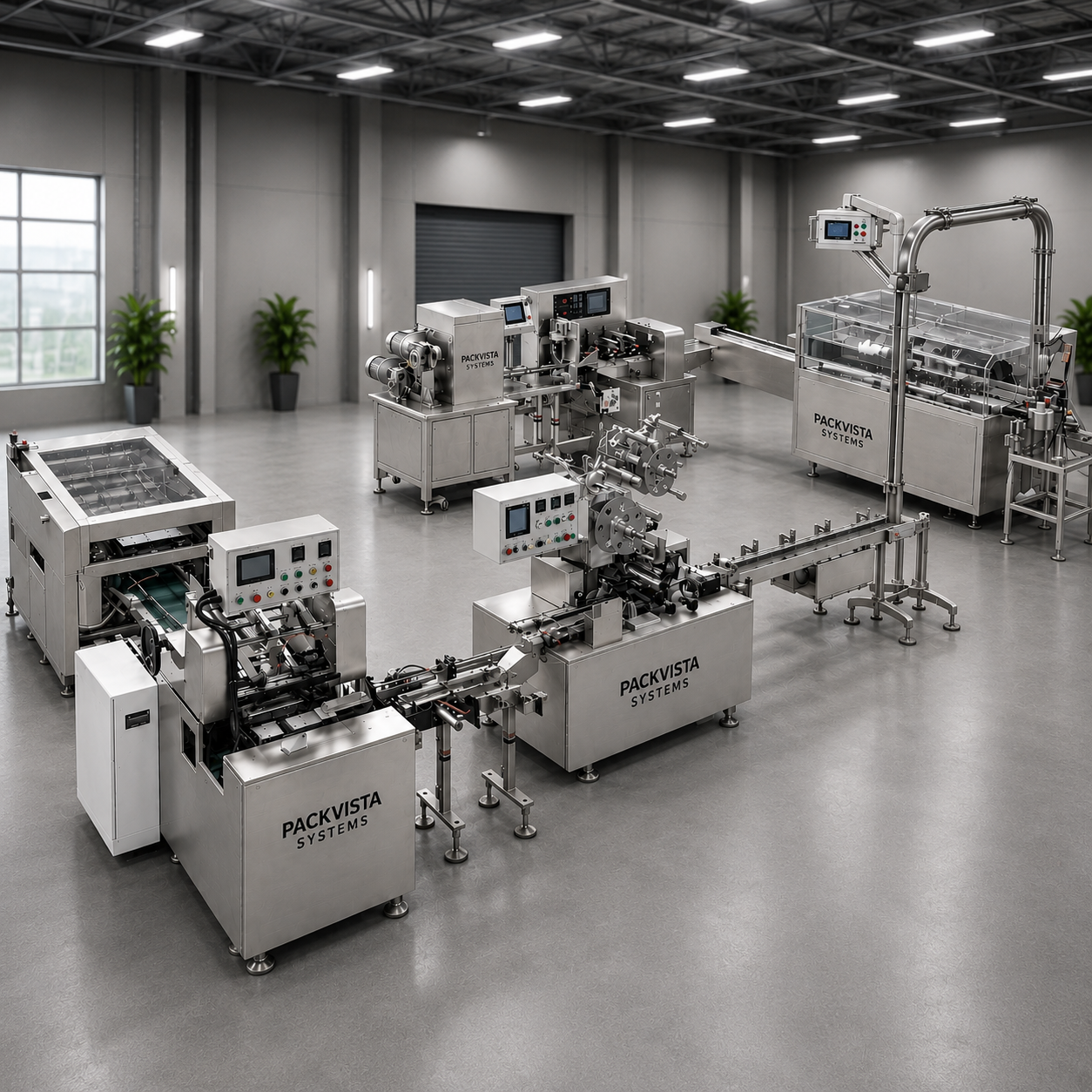

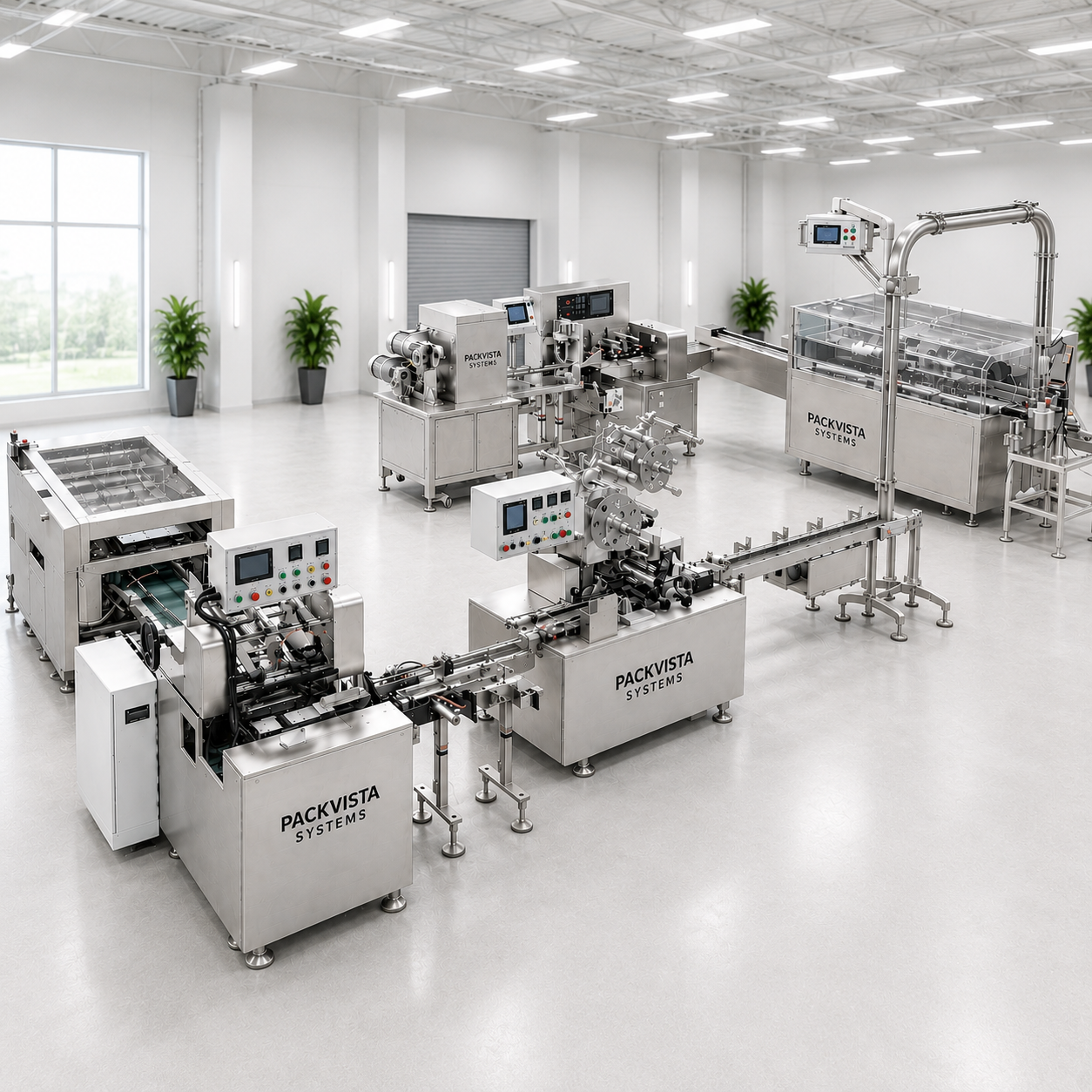

Shisha molasses is among the most challenging materials to handle in automated packing — sticky, moisture-sensitive, and requiring precise dosing to prevent flavor cross-contamination. PackVista’s Automatic Shisha Molasses Packing Line is purpose-built for this complexity, featuring a fully integrated 7-station system that manages the entire process from bulk dosing to pouch formation, cartoning, cellophane wrapping, boxing, and final over-wrapping at speeds of 80–100 pouches per minute.
PRODUCT OUTPUT
Shisha Molasses Pouch | Carton Box | Wrapped Retail Pack

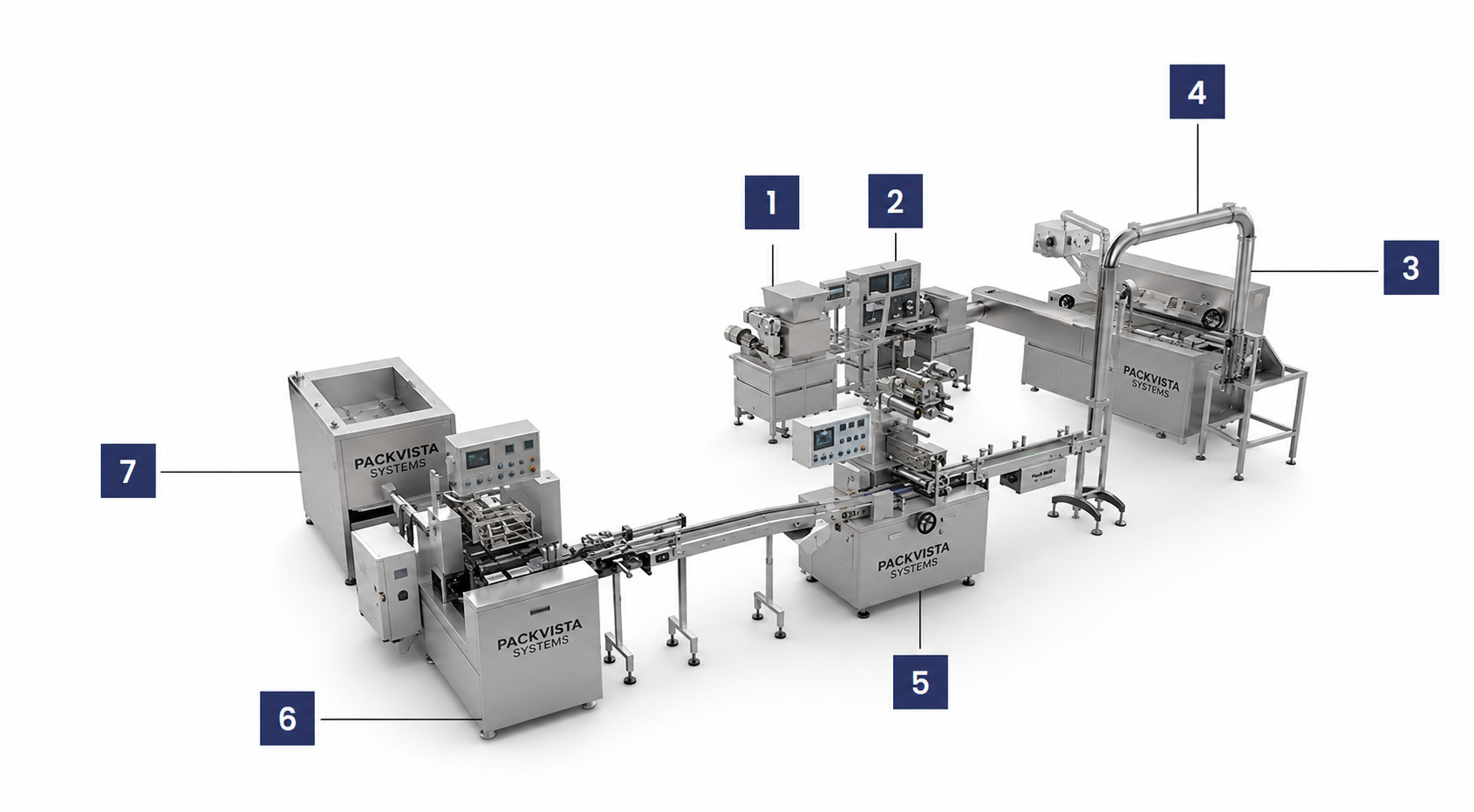

Machine Components
1
Station 1
Dozer — Precision volumetric dosing of shisha molasses
1
Station 2
Pouch Packing Machine — Cellophane pouch forming, filling, and sealing
1
Station 3
Cartoning Machine (Small Box) — Automated small-box cartoning of pouches
1
Station 4
Connecting Conveyor — Inter-station product transfer
1
Station 5
Cellophane Wrapper — Individual carton cellophane over-wrapping
1
Station 6
Box Packaging Machine (Boxer) — Secondary carton boxing and sealing
1
Station 7
Over-Wrapper — Final retail carton shrink/cellophane over-wrapping
| Technical Specifications | |
|---|---|
| Production Capacity | 80–100 Pouches / Min |
| Bag Size (Outer) | 90 mm × 50 mm × 30 mm |
| Volume Range | 25 gm to 100 gm |
| Type of Film | Cellophane |
| Sealing Type | Heat Sealable & Glue Seal |
| Packing Material | Shisha Molasses |
| Air Consumption | 25 CFM @ 6 Bar Pressure |
| Power Consumption | 35 KW |
| Voltage Supply (Standard) | 440V, 50 Hz, 3 Phase |
| Machine Dimension | 18 m (L) × 15 m (W) × 3.5 m (H) |
| Machine Weight | 8,000 Kg |
